Built on an ISO 27001-based architecture with end-to-end encryption, Remote Access Cloud connects outbound-only, requiring no port forwarding or VPN tunnels. It’s fully aligned with modern IT security policies.
Plug & Play setup

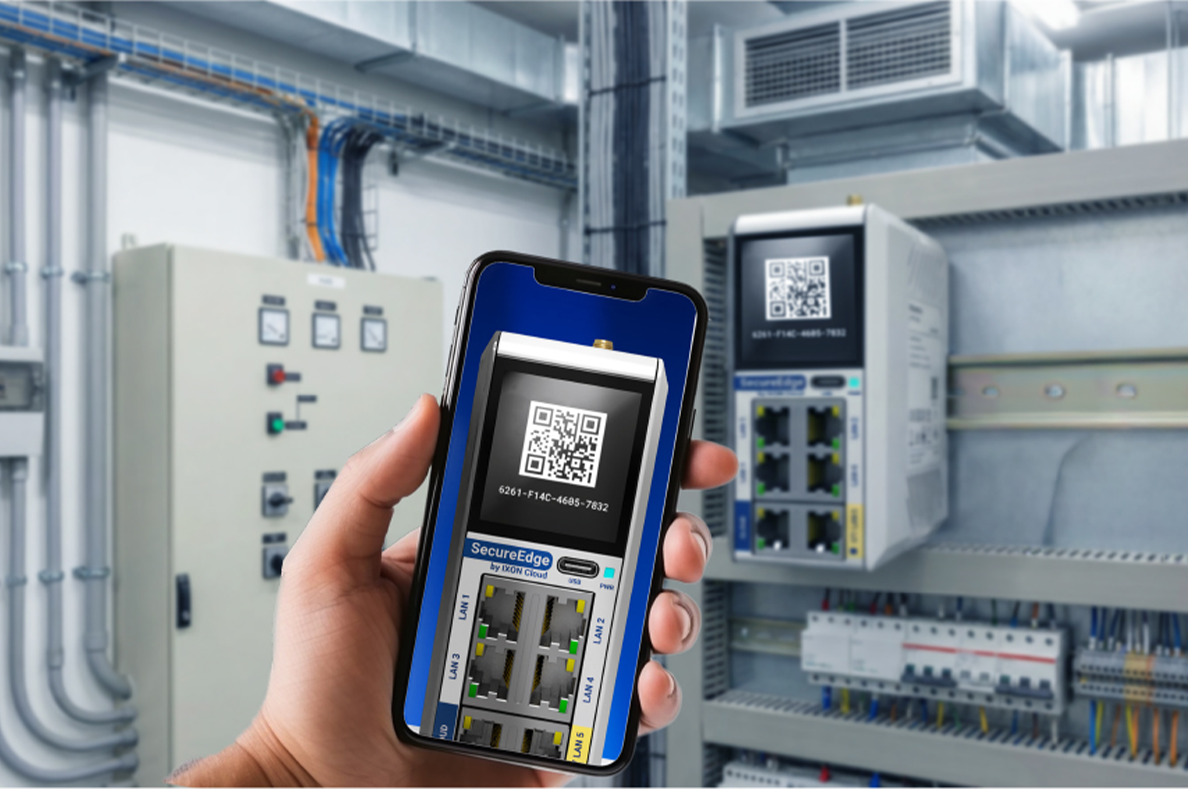

Installation is fast: scan the QR code, activate your device and you’re online. The same configuration works across all buildings, so you can scale your service portfolio without custom setups or network complexity.
Built for industrial reliability
IXON's edge gateways support any BMS, such as BACnet/IP and Modbus TCP. Runs 24/7 in on-site equipment rooms for dependable, continuous operation, so you can be sure of reliable access to every building or system.
Secure & reliable connectivity
Outbound cloud connectivity
Connect to the cloud without opening inbound firewall ports. It simplifies IT approval and deployment.
Role & permission control
Ensure that only the right people access the right systems, protecting data while maintaining efficiency.
Multiple protocol support
Connect to modern and legacy building systems with ease, enabling seamless integration across buildings.
Edge computing & data buffering
Collect data reliably even during network interruptions, so data collection stays uninterrupted.
Local access for onsite commissioning
Engineers can plug in and work directly on site, speeding up commissioning and maintenance.
Industrial performance & reliability
Robust hardware with regular firmware updates and cloud monitoring ensures buildings stay connected 24/7.

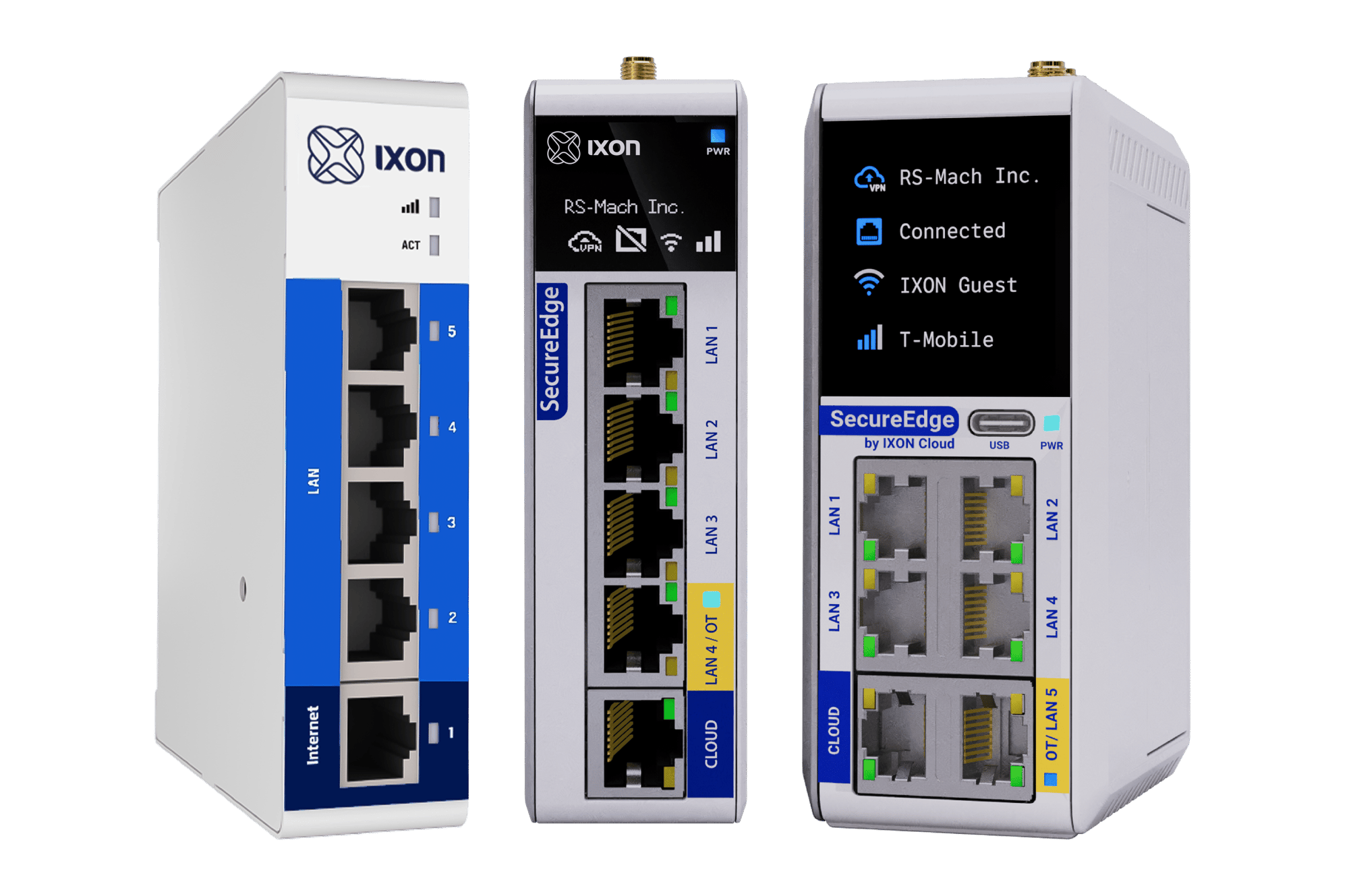

IXrouter3
Proven, compact gateway for secure remote access and data logging in any environment.
3 x LAN, 1 x WAN (factory network/cloud) 1x configurable port for LAN or factory network
4 x LAN, 1 x WAN (factory network/cloud) 1x configurable port for LAN or factory network
CPU
MIPS 880 Mhz
Quad-Core ARM Cortex-A53 1.8 GHz
Quad-Core ARM Cortex-A55 1.8Ghz + NPU
Memory
256MB DDR3
1GB LPDDR4
4GB LPDDR4
Storage
16MB SPI flash + 8GB flash for data logging
32 GB eMMC in pSLC-mode for reliability, with 5GB of user space
Expandable storage
n/a
n/a
Yes, PCIe SSD in M.2
VPN speed (TCP/UDP)
Approx. 10 Mbit/s
Approx. 30 Mbit/s
Approx. 30 Mbit/s
Docker apps
n/a
n/a
Yes
Touchscreen
n/a
0.96" monochrome
1.54" full color
Other hardware
USB 2.0 (Type A)
USB 2.0 via USB-C connector, eSIM, and TPM 2.0
USB 3.0 (Type C), eSIM, and TPM 2.0
Dimensions (excl. DIN rail mount)
111x95x28 mm (H x D x W)
112x101x31 mm (H x D x W)
111x111x45 mm (H x D x W)
Security built-in

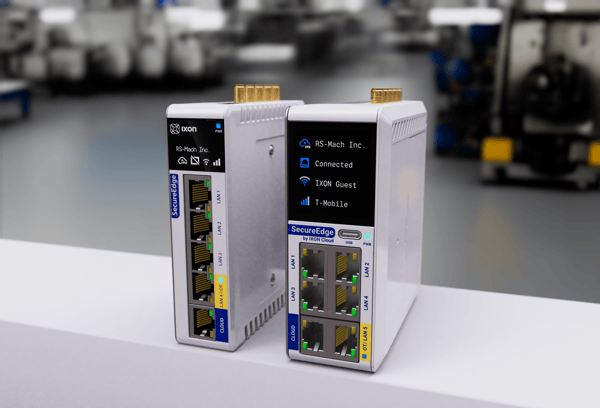

IXON's edge gateways are designed with security in mind. Security decisions are embedded in the product, not bolted on later. All edge gateways receive regular firmware upgrades and are ISO 27001 certified. The SecureEdge gateways offer some extra security options:
